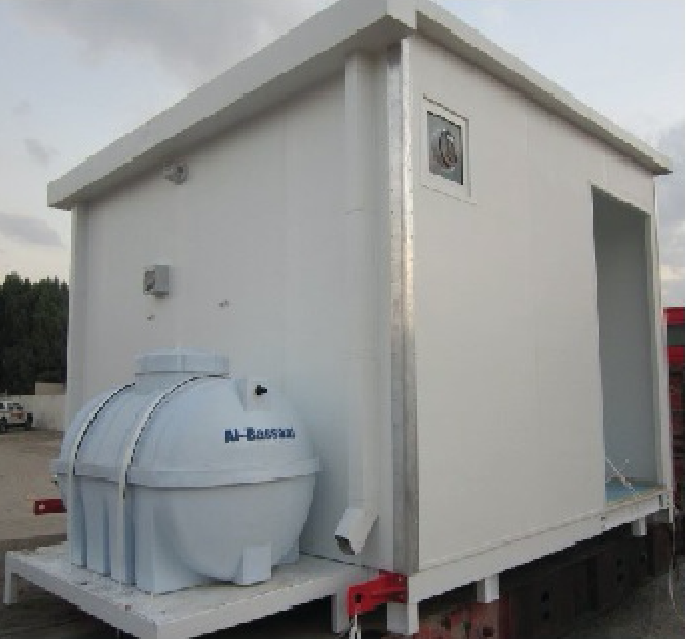

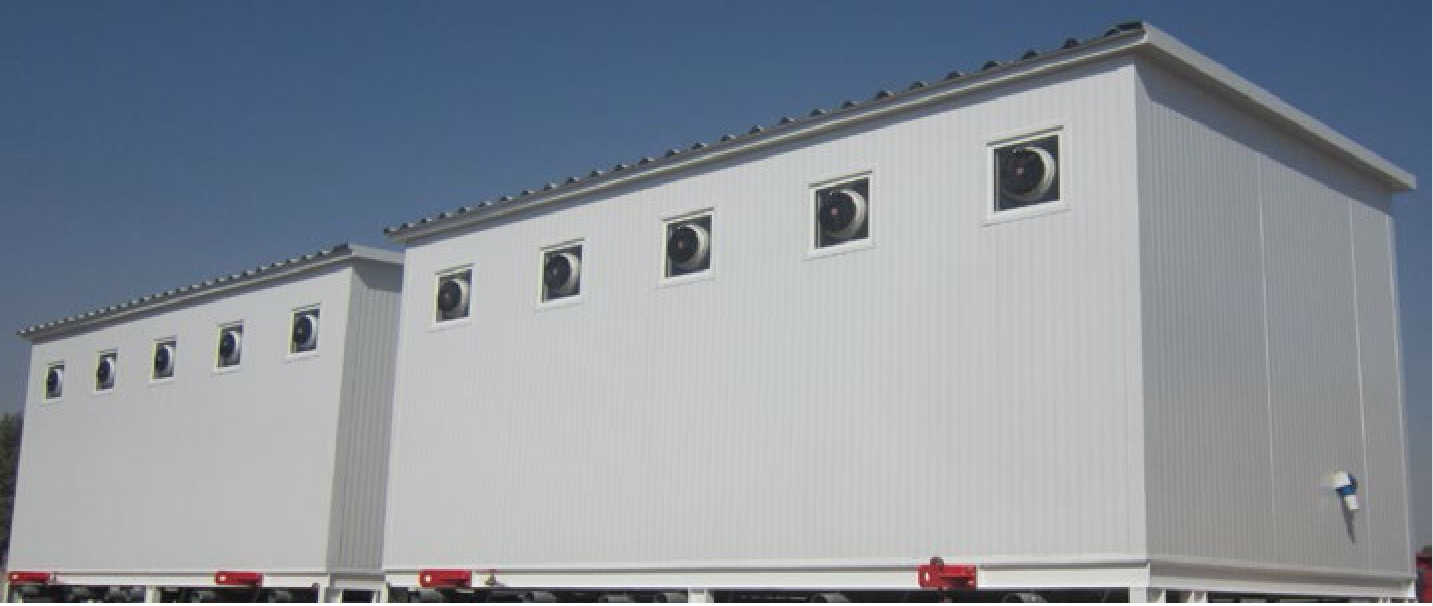

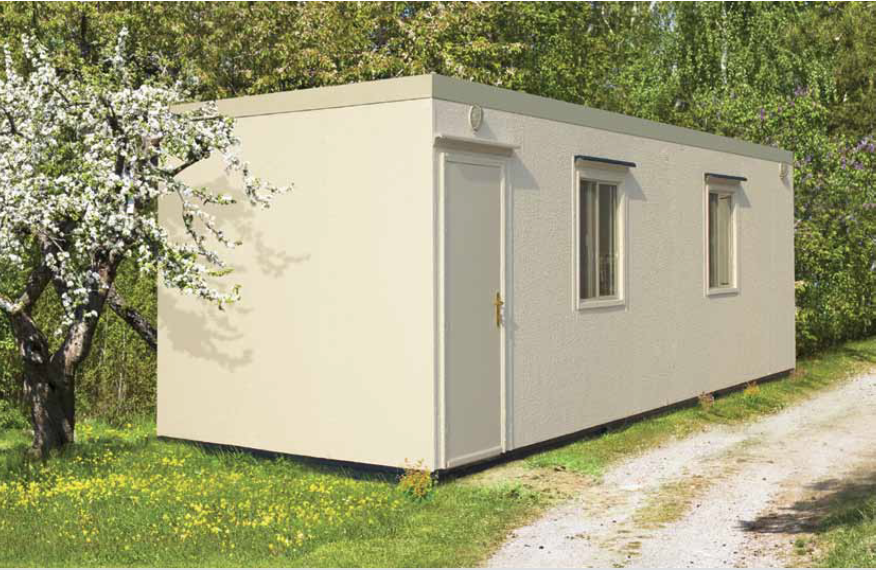

Porta Cabins

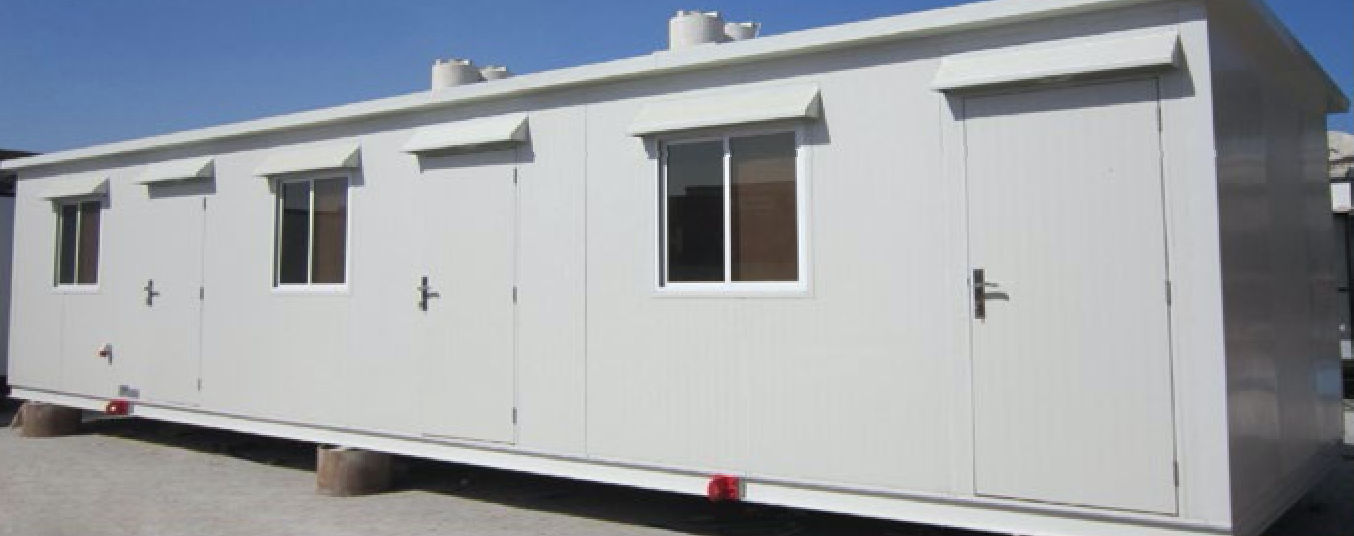

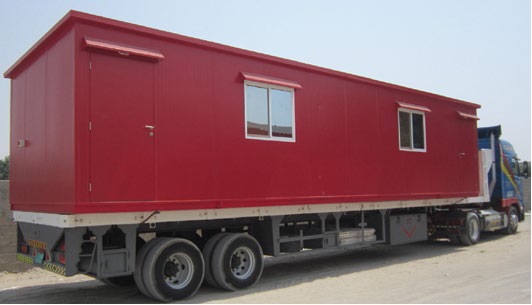

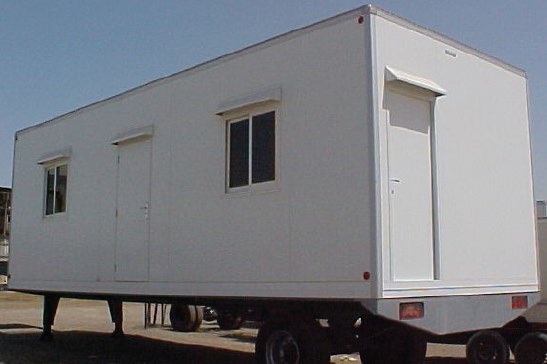

Duramax and TSSC are industry leaders in the design and manufacture of pre-assembled or knock down Porta-Cabins that are ready for installation wherever they are needed. These sturdy buildings can be used as permanent units, or can be easily relocated (i.e. lifted and carried from site to site) in knock down condition.


Each energy-efficient Porta Cabin is built using insulated galvanized metal roof and wall panels. These panels feature fire-retardant CFC-free B2 polyurethane insulation sandwiched between an inner and outer skin. While the exterior wall is made of pre-painted steel (standard) or plastisol steel (optional), the pre-painted metal (standard) or vinyl (optional) interior walls give the home an attractive and smooth surface finish.

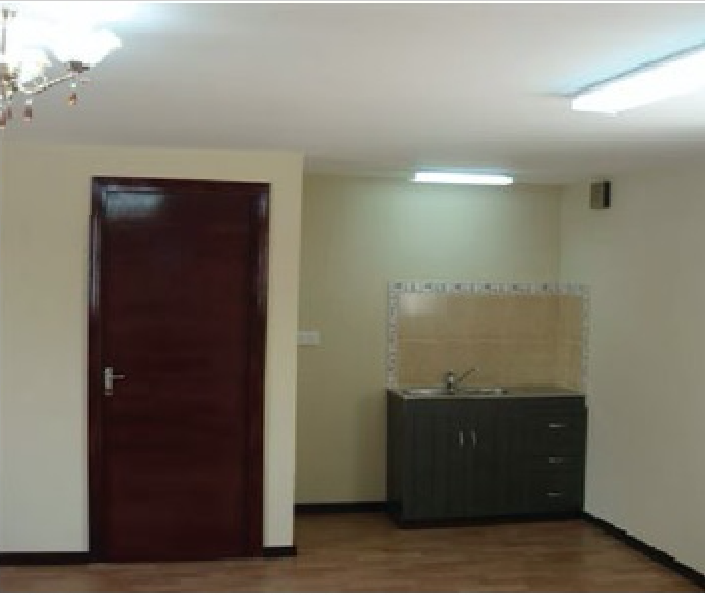

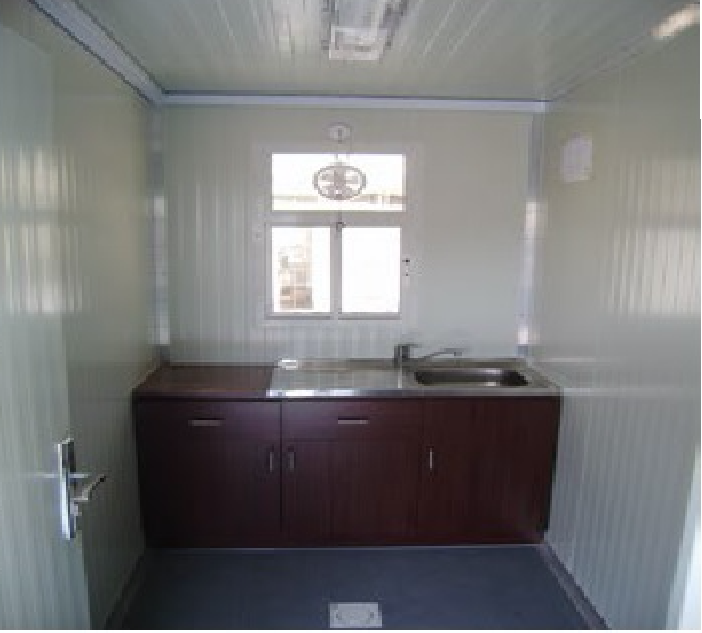

Strong and sturdy, the one-story Porta-Cabins are adaptable to any environment and provide superior acoustic performance and thermal insulation. Porta-Cabins can also be provided with all amenities (such as bathroom and kitchenette fixtures) pre-installed.

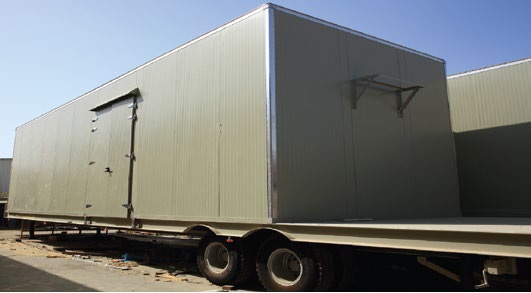

If desired, Porta-Cabins can also be delivered in knock-down form; the units are quick and easy to assemble.

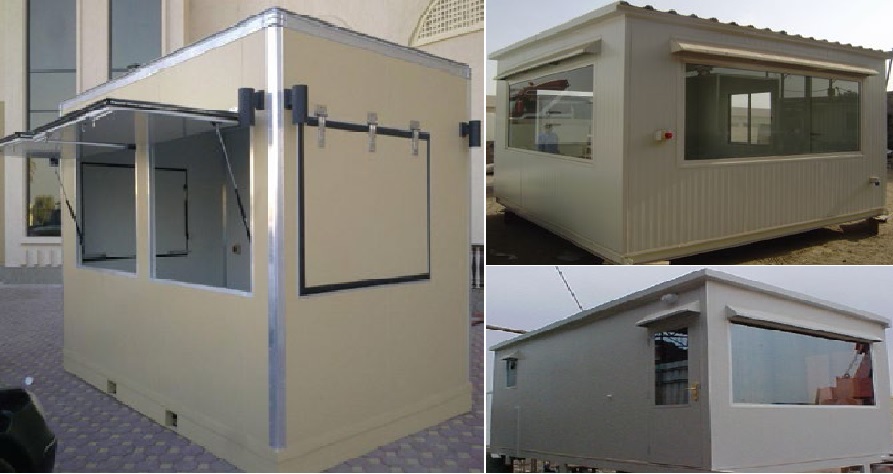

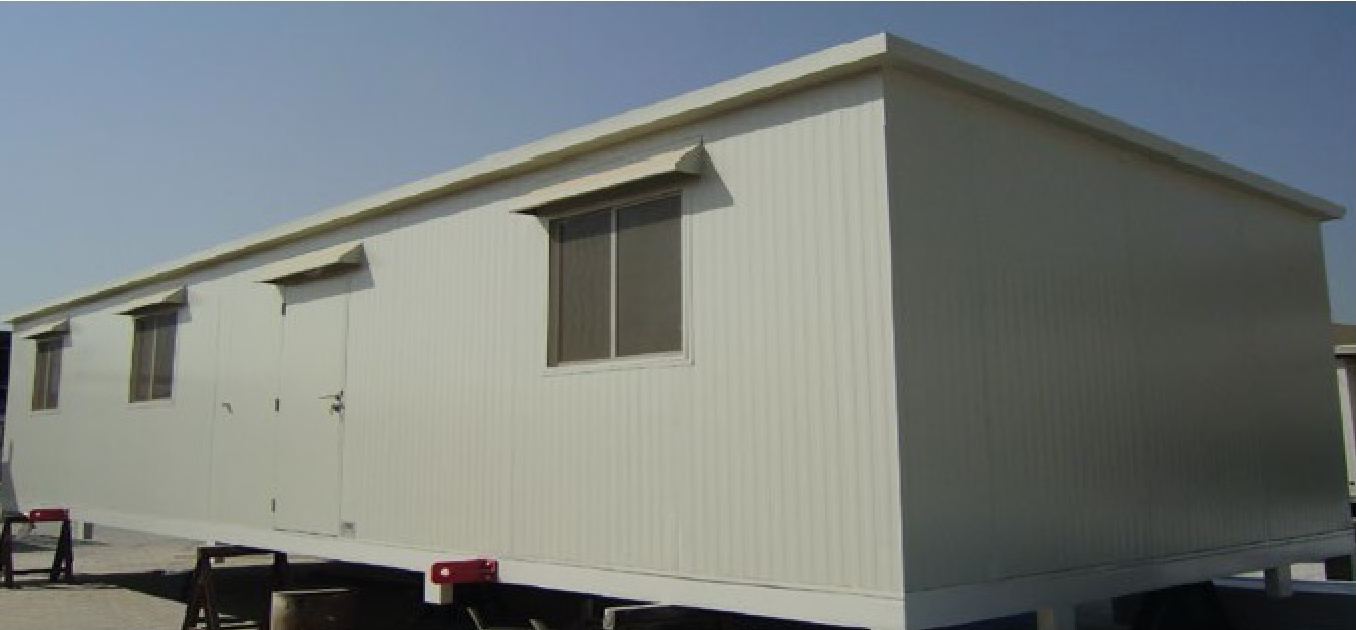

Porta-Cabins are an ideal solution for all types of applications, including housing communities, workers accommodation, offices, clinics, schools and police stations in a mixed development requiring quick and cost-effective permanent or temporary construction

• Highly durable, long lasting and low maintenance

• Delivered factory assembled or in knock-down form (quick and easy assembly nut and bolt connections)

• Pre-painted or Polyster coated galvanized steel insulated walls

• Attractive pre-painted metal interior walls

• Units provide superior heat and sound insulation and are waterproof

• Resistant to mold, mildew, algae, rodents and termites

• Surface-mounted electrical conduits and boxes

• Electrical and sanitary connections ready for plug and play

• Electrical, light fixtures, A/C units and Furniture are available (optional)

• Can be manufactured based on custom floor plans and dimensions

OVERVIEW

(placeholder)
(placeholder)

FEATURES

(placeholder)
(placeholder)

SPECS

(placeholder)
Back To The Top

Dimensions

(placeholder)

SUPPORT

(placeholder)
(placeholder)
(placeholder)

• Dimensions: 11.5m x 3.45 m or custom dimensions.

• Steel base structure: Built from a panelized system of light-gauge steel with “C” and “U”-shaped profiles engineered with simple bolted connections. Produced by high-tech CNC lines.

• Walls: Durable and energy efficient, the outer walls and partition walls are pre-painted GI (galvanized steel) with polyurethane (PU) insulation at 38kg/m³ density. This fire-retardant insulation provides superior thermal protection and sound absorption. The exterior profile of the panel is low-ribbed and white in color (RAL 9003).

• Wall thickness: Standard wall thickness is 40mm; 50mm thick walls can also be supplied.

• Windows: Standard aluminum windows with single or optional double pane glass. PVC windows are also available.

• Doors: Door panels and frame are made of galvanized steel, injected with polyurethane insulation for durability and proper insulation. Durable stainless steel handles and hinges are included.

• Floor finish: Made from 2 mm durable vinyl sheet rolled over 18mm WBP plywood that is screwed to the steel base.

• Lifting hooks are included.

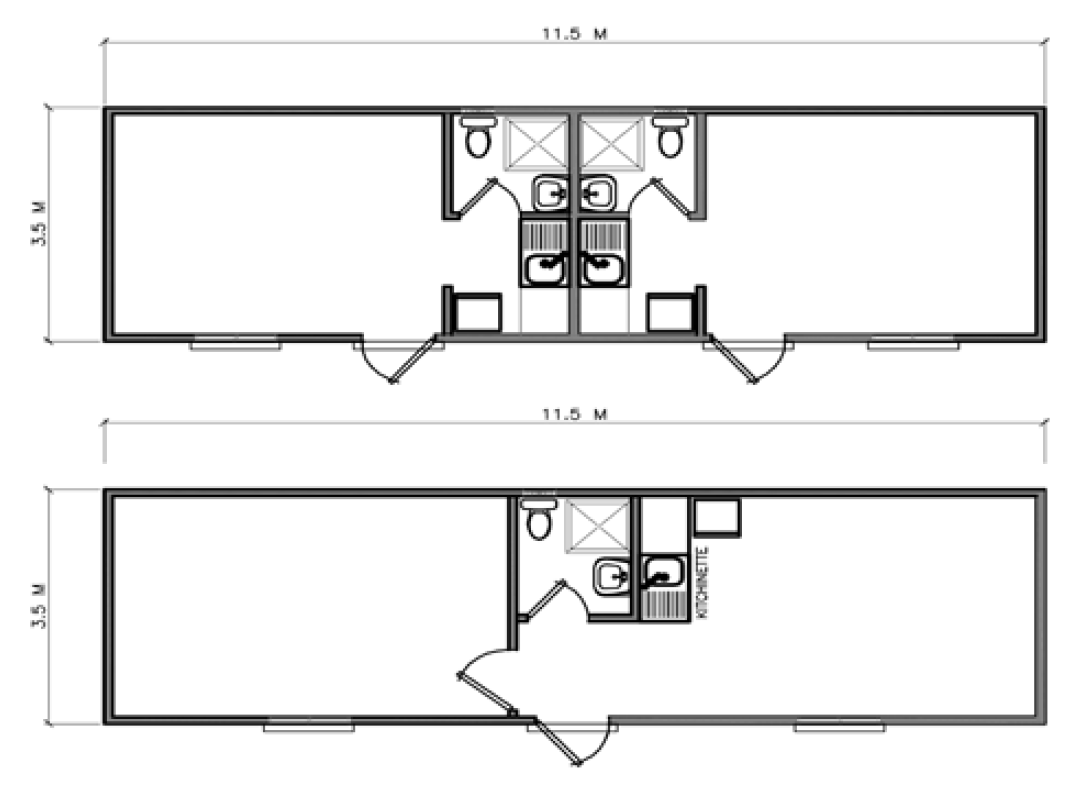

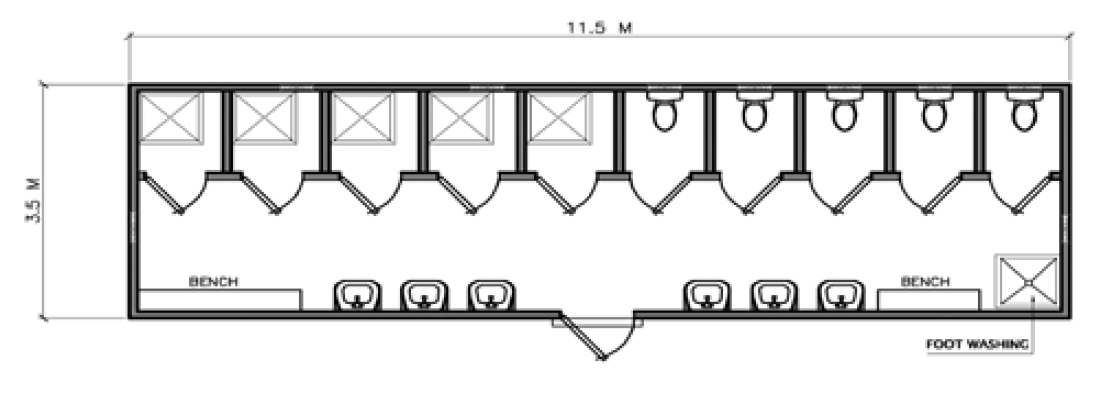

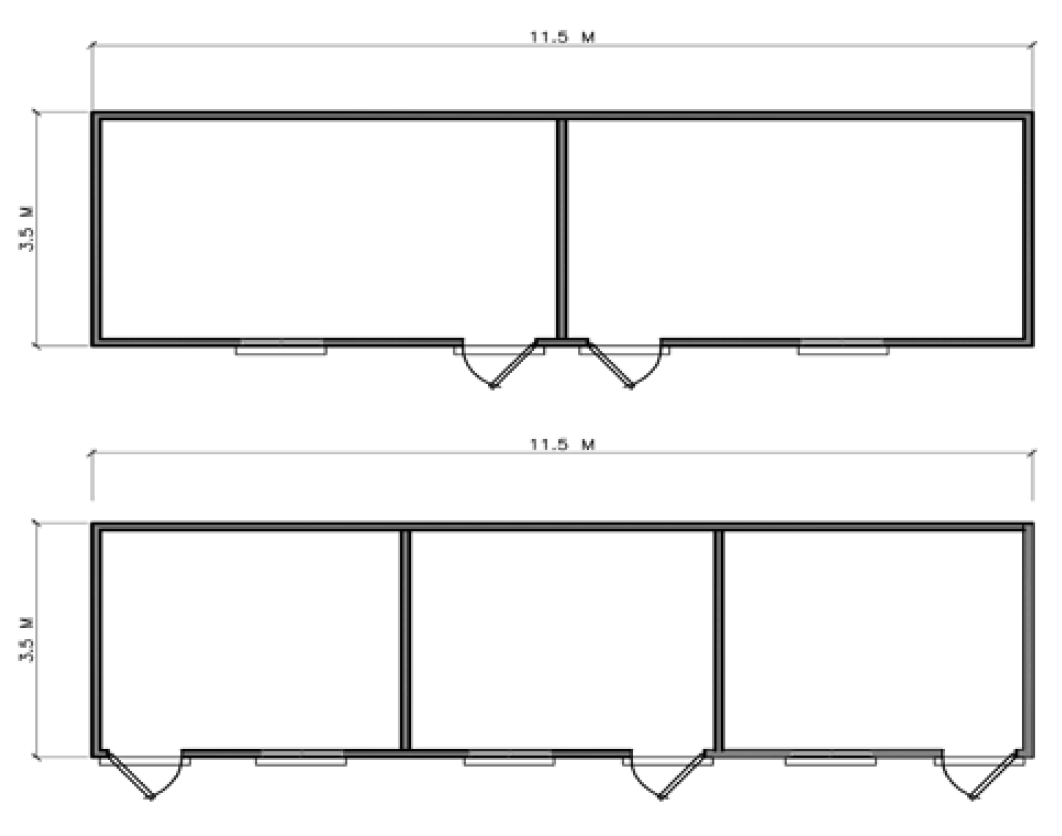

Floor Plans
